AFC-22

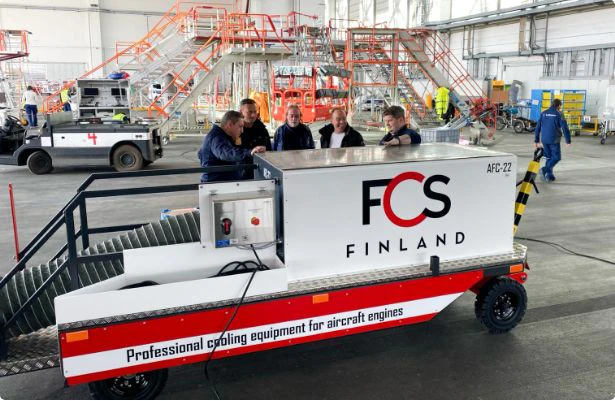

AFC-22 jet engine cooling solution is our patented cooling system that employs a vacuum based mechanism for engine attachment. With custom-fit adapters catering to diverse engine types, AFC-22 optimizes cooling efficiency, slashing maintenance time and minimizing aircraft downtime.
Key facts
- The maximum allowed mass flow limit is 3.5 lbm/sec. Testing has confirmed that when used with the adapter and engine, the flow remains well within this limit.
- Patented cooling system for aircraft engines.
- Featuring a vacuum-based cooling system to be connected with a tailor-made engine adapter, it significantly reduces maintenance time by up to 8 hours.
- Custom-fit adapters cater to various engine types.
Main features

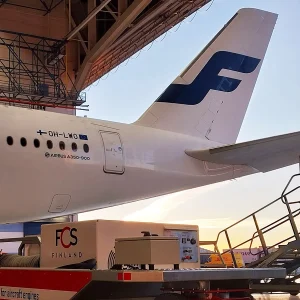

“With AFC-22 Finnair can better use and plan slots for maintenance work. The cooler has proven to be very helpful for this purpose and tighter slots can be planned. Maintenance works gets to start much quicker after the flight. Also, especially on engine borescoping tasks the tool is essential to keep heat at desired level during the maintenance completion.”
Reijo Katiska, Program Engineer for Trent XWB
Finnair PLC Technical Operations
BATTERY POWERED AFC-22e
The AFC-22e, a battery-powered model, is a greener choice, reducing emissions and environmental impact.
- Sustainable Power: Powered by battery, AFC-22e offers an impressive 7-hour operational window on a single charge. Its quick recharging capability minimizes downtime, ensuring continuous functionality with minimal environmental impact.
- Environmental Impact: By transitioning to AFC-22e, aircraft operators can significantly reduce emissions and environmental footprint. The adoption of this greener solution aligns with industry-wide efforts towards sustainable aviation practices.
Silent Version AFC-22S

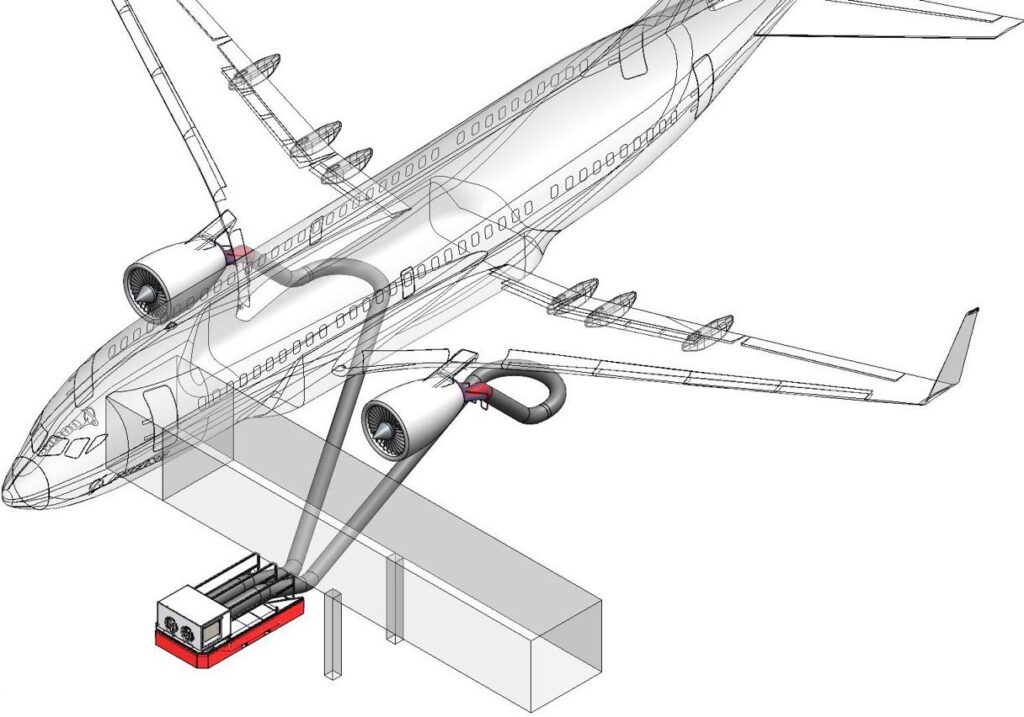

The AFC-22S is a specially modified version of our popular AFC-22 unit, designed to deliver powerful performance with minimal noise. Equipped with a high-quality silencer, this model operates at an impressively low noise level of just 77 dB.
This makes it an ideal choice for aircraft maintenance hangars and other aviation environments where reducing noise is crucial for communication, safety, and technician comfort. The AFC-22S combines the trusted reliability of the original AFC-22 with enhanced acoustic control, ensuring both efficiency and a quieter working environment in demanding hangar conditions.
Specifications
| Voltage | 380-500V |
| Current | 16A – no max |
| Cables | As ordered |
| Frequency | 50-60 Hz |
| Suction speed | 11,3 m/s |
| Suction power | 1,4m2/s 500Pa |
| Device width | 1320 mm = 51 31/32” |
| Device length | 3382 mm = 133 5/32” |
| Device height | 1200 mm = 47 1/4” |
| Device weight | 595 kg = 1311 lb |
| Vacuum Adapter diameter | 1800 mm = 70 7/8″ * |
| Vacuum Adapter weight | 20 kg / 44,09 lb * |
| Pipe length | h6000 mm = 236 7/32″ |
| Pipe inner diameter | 400 mm = 15 3/4″ |
